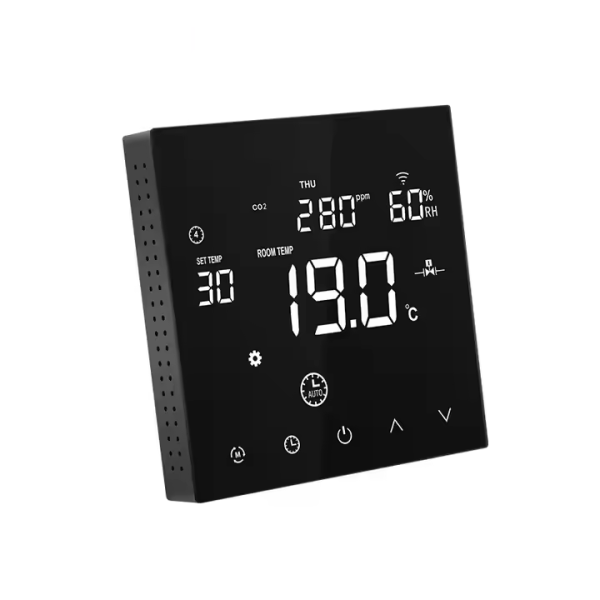

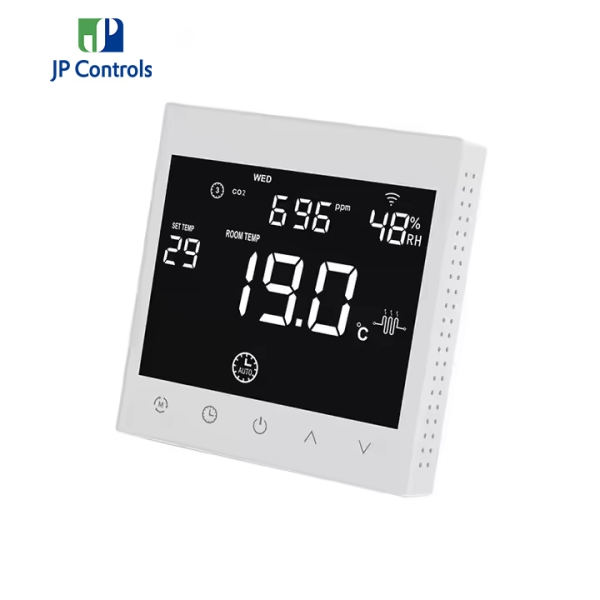

FC285 floor heating room controller has been designed for individual control of temperature in commercial and residential buildings.
It controls the operating state of the floor heating equipment by comparing the ambient temperature with the set temperature, which improves comfort and achieves energy saving. With its flush mounted modern design the device combines digital technology with a large LCD display and additional buttons, which enables the single room controller to be used intuitively.
Features:

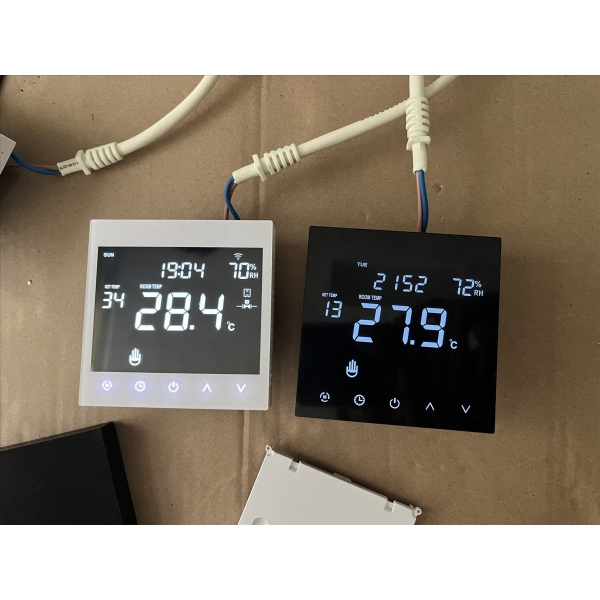

Large LCD display, black background white backlights
Detect and display room Temperature & Humidity
Large LCD display, black background white backlights
Wi-Fi (2.4G) or Modbus RS485 optional
CO2 and TVOC detect and display (optional)
7 days + 6 periods programming
Fire Proof -ABS, White /Black enclosure
ECO mode
External sensor (for electrical heating type)
Power supply :100~250Vac, 50/60Hz
Specifications:
| Power Supply: | 100-250VAC, 50/60Hz | |||||||||||
| Setpoint Range: | 1-50°C ( Default 16-30°C) | |||||||||||
| Temperature Set Accuracy: | ±1°C/step | |||||||||||
| Temperature Display Accuracy: | ±1°C | |||||||||||
| Display: | LCD LCD 75x55mm, black background white backlights | |||||||||||
| Temperature Sensor: | NTC 10K | |||||||||||
| Enclosure: | Fire Proof -ABS, White /Black enclosure | |||||||||||

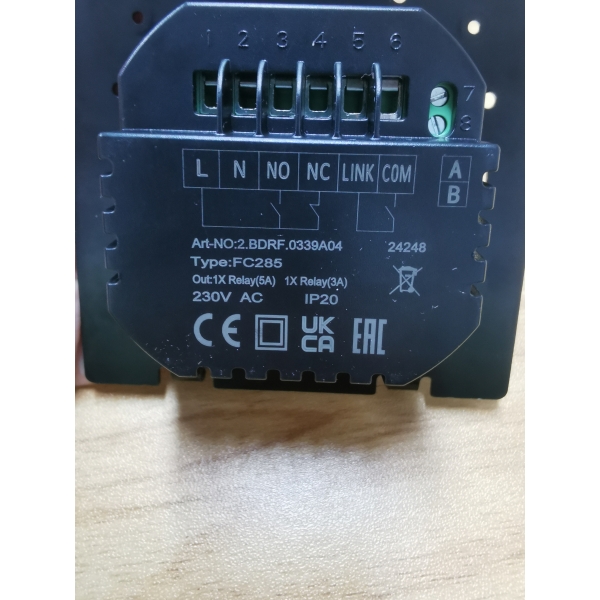

| Load current: | Max 3A (250Vac, water heating), Max 20A (250Vac, electric heating), | |||||||||||
| Networking: | Wi-Fi (Modbus RS485 optional) | |||||||||||
| Ambient Condition: | -10°C~50°C, 5-95% RH (non-condensing) | |||||||||||
| Dimension: | 86*86*14.3mm | |||||||||||
| Mounting: | Flush mounted with standard EU box (Ø=60mm) | |||||||||||
| Installation hole distance: | 60mm | |||||||||||
| Protection: | IP20 according to EN60529 | |||||||||||
| Weight: | 200g | |||||||||||
