FC08-2 smart touch screen thermostats are designed to control room temperature in industrial, commercial
or residential environment via controlling fan and motorized valve in fan coil
unit of central air conditioning system. Models are available for cooling/heating/ventilating
control of 2-pipe or 4-pipe fan coil units.
FC08-2 FCU thermostat
FC08-2NK FCU thermostat with Modbus RS485

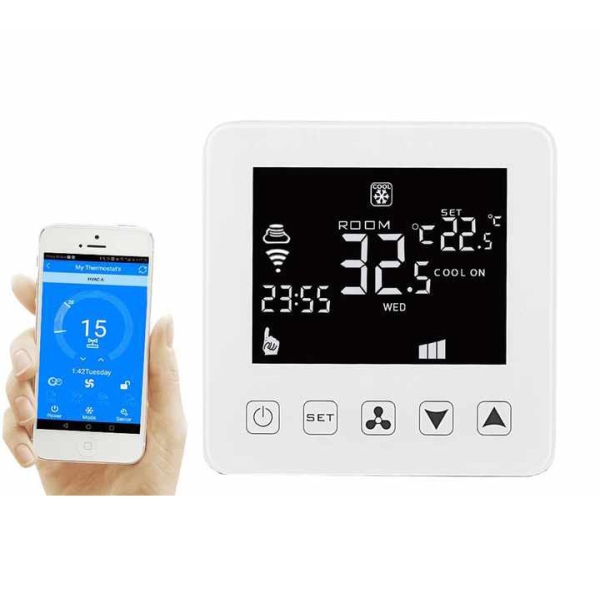

FC08-2WF FCU thermostat with WiFi
FC08-2M PID 0-10V temperature controller
Description：
FC08-2 series smart touch screen thermostats are used to control room temperature by comparing room temperature with setting temperature to open or close fan coil unit or motorized valve in central air conditioning system, which can keep room in a comfortable temperature for people and can help to saving energy.
Features：
Fashionable appearance
Detect and Display Room Temperature
Large LCD touch screen display
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming (-NK,communicating type not included)
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set
WiFi function is optional
Communicating Modbus RS485 optional
Specifications:
| Power Supply: | 100-240Vac 50/60Hz | |||||||||||
| Setpoint Range: | 5-35°C | |||||||||||
| Set Unit: | 1℃/step | |||||||||||
| Display Accuracy: | ±0.5°C | |||||||||||
| Display: | LCD display touch screen | |||||||||||
| Mode Setting: | Cool, Heat, Ventilating | |||||||||||
| Fan Speed Adjust: | Low, Medium, High, Auto | |||||||||||
| Control Performance: | On/Off | |||||||||||
| Temperature Sensor: | NTC 10K | |||||||||||
| Enclosure: | ABS plastic | |||||||||||
| Remote Control: | Remote controller optional | |||||||||||
| Networking: | RS485 | |||||||||||
| Dimension: | 86*86*14mm | |||||||||||
| Ambient Condition: | -10~50℃, 5-95% RH (non-condensing) | |||||||||||
| Mounting: | Wall mounted | |||||||||||
| Wiring: | Terminal block max. 1.5mm2 | |||||||||||
| Protection: | IP30 | |||||||||||
