FC08-4 standard type;
FC08-4WF WiFI type;
FC08-4NK w/t Modbus RS485 communicating type
Features：
Fashionable appearance
Detect and Display Room Temperature
Large LCD touch screen
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming (-NK,communicating type not included)
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set
Specifications:
Power Supply
100-240Vac, 50/60Hz
Power consumption
<1W
Load current
Max 3A
Setpoint Range
5-35°C
Set Unit
1°C/step
Display Accuracy
±0.5°C
Networking
WiFi function or Modbus RS485
Fan type
3-speed fan
Outputs
Relay
Temperature Sensor
NTC 10K
Backlight
Blue,green or white backlight optional
Enclosure
Fire proof ABS
Ambient Condition
0°C~50°C, 5-95% RH (non-condensing)
Dimension
86*86*14mm
Mounting
Wall mounted with standard EU box
Wiring
Terminal block max. 1.5 mm²
Installation hole distance
60mm
Protection
IP20

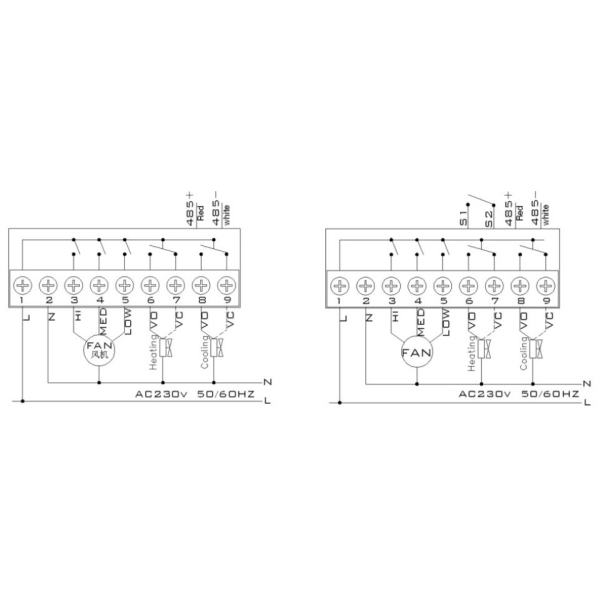

Wiring Diagram:
