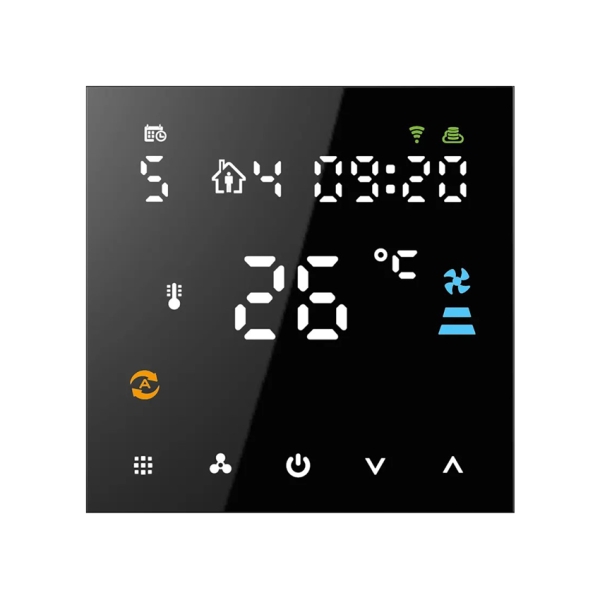

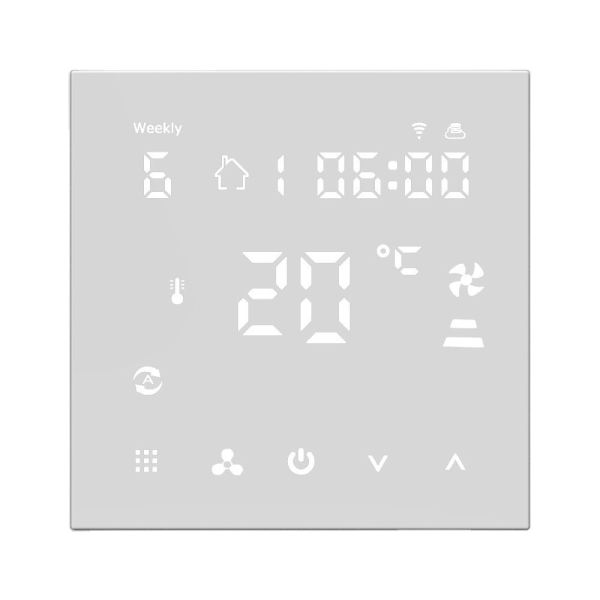

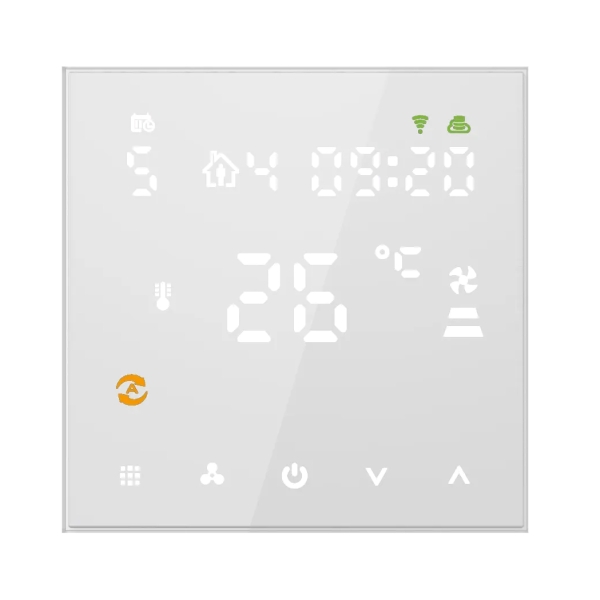

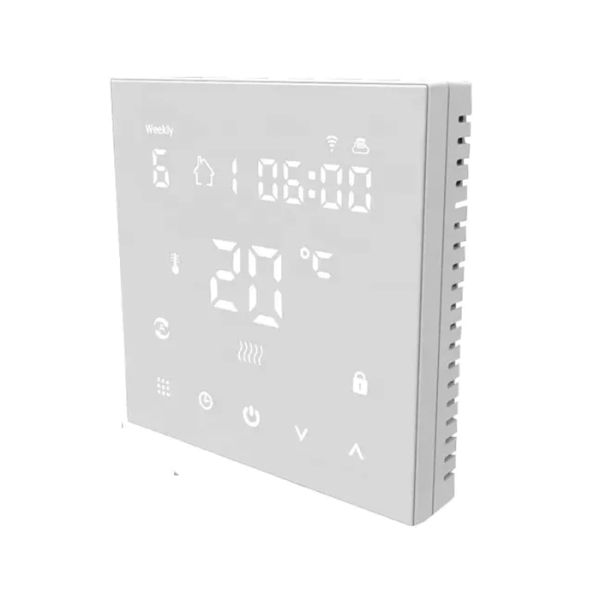

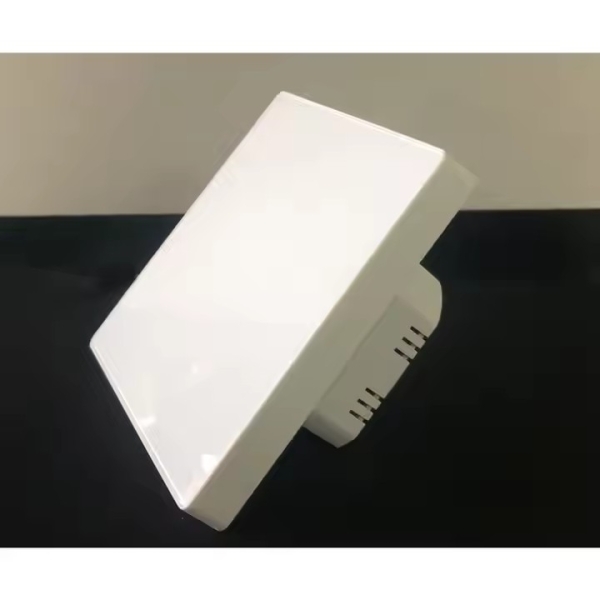

FC607 is a smart touch screen thermostat for fan coil unit. It uses Tuya WiFi chip module and for valves, damper in AC system. Modes are available for heating/ cooling/ ventilating or auto for 2-pipe or 4-pipe fan coil unit. It's easy to install and operate. It adapts to commercial, residential or industrial applications. WiFi or Modbus communicating is optional.
Features:
Detect and Display Room Temperature
Large LCD display
WiFi or Modbus RS485 optional
0-10V analog signal output
Cooling, heating, ventilating or auto mode
3-speed fan (EC motor fan optional)
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Key card optional
Key lock function to avoid mistake operation
Sleep mode
Specifications:
Power Supply
90-240Vac, 50/60Hz
Power comsumption
<1W
Load current
Max 3A
Setpoint Range
5-35°C
Set Unit
1°C/step
Display Accuracy
±0.5°C
Networking
WiFi function or Modbus RS485
Fan type
3-speed fan (EC motor fan optional)
Outputs
Relays (0-10V
analog output optional)
Temperature Sensor
NTC 10K
Backlight
Black background white lighting
Enclosure
Fire proof ABS
Ambient Condition
-10°C~60°C, 5-95% RH (non-condensing)
Dimension
86*86*14mm
Mounting
Wall mounted with standard EU box
Wiring
Terminal block max. 1.5 mm²
Installation hole distance
60mm
Protection
IP20
