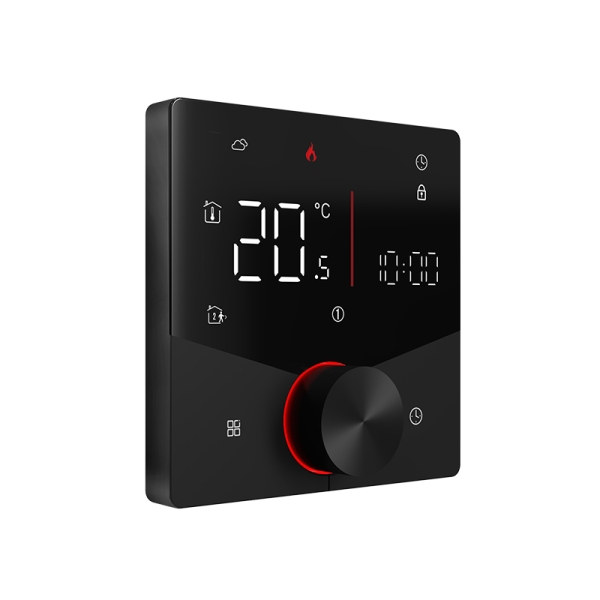

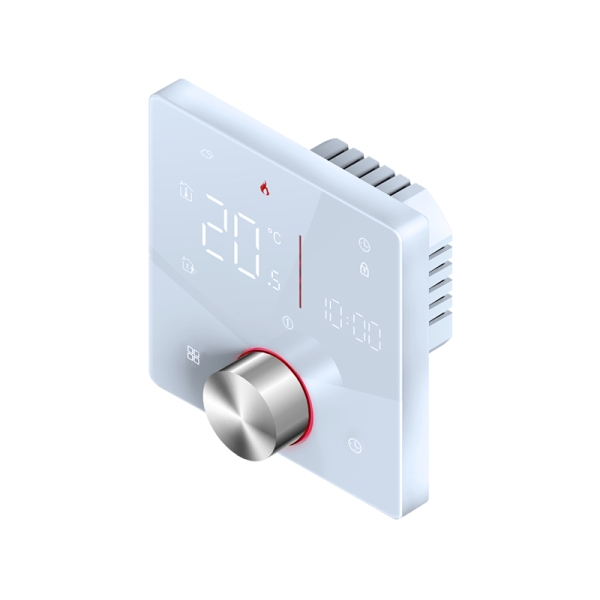

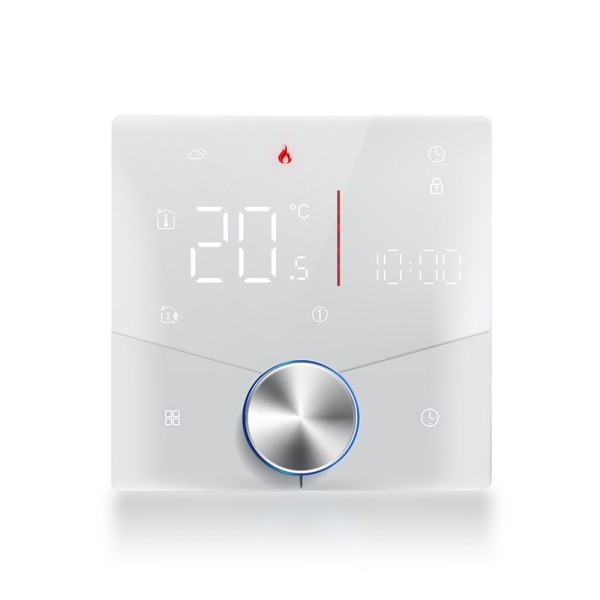

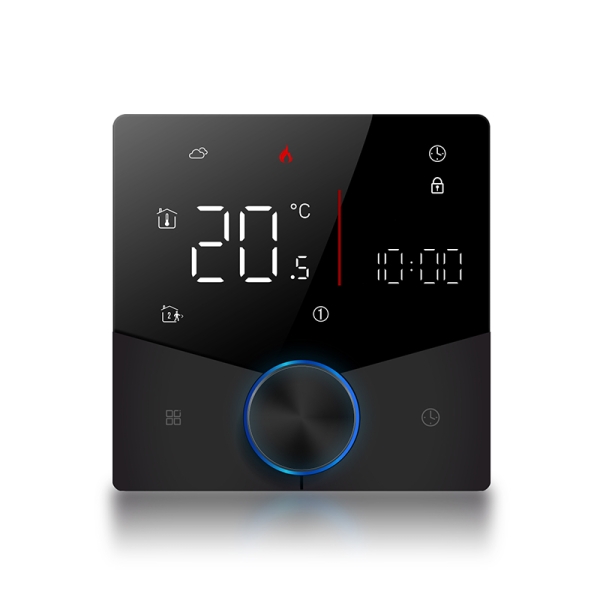

ST-C29 WiFi smart heating thermostat is developed to control electric underfloor heating, water heating or water/gas boiler system. It's LED display and LED matrix light. These units are designed for use in commercial, industrial, residential.
Features:
LED display, more friendly interface;. LED matrix light, simple display, energy saving, protect your eyes.
Touch buttons to make simple operation.
The ultra-thin embedded panel perfectly fits all kinds of walls; The visiable thickness above the wall is only 12.4mm.
Frameless acrylic panel design, simple and elegant;
Classic black/white color scheme, seamlessly integrated.
5+2/6+1/7 days 4 periods programmable
Overheat protection and anti-freezing protection
WiFi function, Tuya WiFi App
Specifications:
| Power Supply: | 90-240VAC, 50/60Hz | |||||||||||
| Setpoint Range: | 5-35°C ( Default 16-30°C) | |||||||||||
| Temperature Set Accuracy: | ±1°C/step | |||||||||||
| Temperature Display Accuracy: | ±0.5°C | |||||||||||
| Display: | LED display, LED matrix light, simple display, energy saving, protect your eyes. | |||||||||||
| Temperature Sensor: | NTC 10K | |||||||||||
| Enclosure: | Fire Proof PC+ABS, White /Black enclosure | |||||||||||
| Load current: | Max 5A (water heating), Max 16A (electric heating), | |||||||||||
| Networking: | WiFi ( Modbus RS485 optional) | |||||||||||
| Ambient Condition: | -10°C~50°C, 5-95% RH (non-condensing) | |||||||||||
| Dimension: | 88*88*12.4mm | |||||||||||
| Mounting: | Wall mounted with standard EU box (Ø=60mm) | |||||||||||
| Installation hole distance: | 60mm | |||||||||||
| Protection: | IP20 according to EN60529 | |||||||||||
| Button | Capacitive Touch Buttons | |||||||||||
