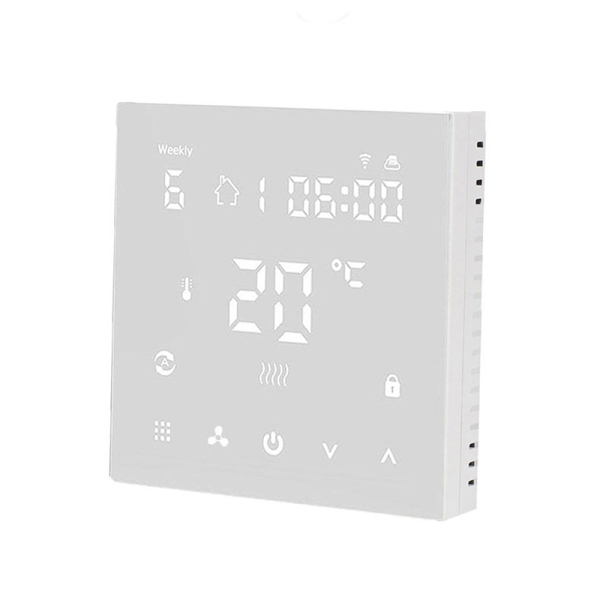

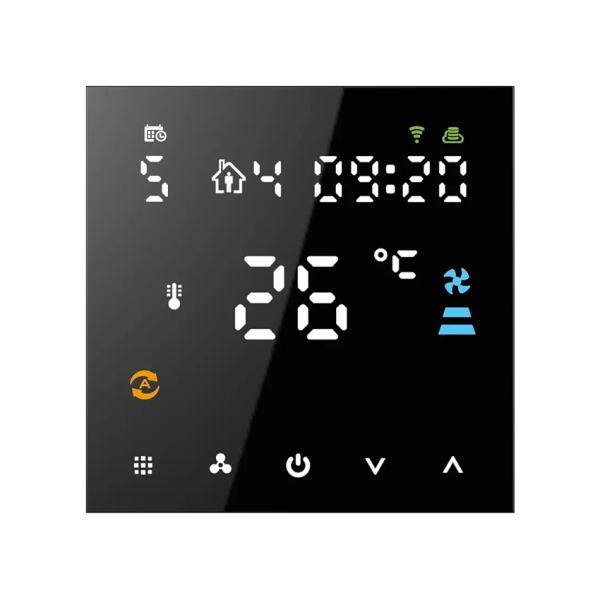

FC607EC is a PID touch screen thermostat. This thermostat is designed to control EC motor fan and modulating valves in AC system. Modes are available for heating/ cooling/ ventilating or auto for 2-pipe or 4-pipe fan coil unit. It's easy to install and operate. It adapts to commercial, residential or industrial applications. WiFi or Modbus communicating is optional.
Features:
Detect and Display Room Temperature
Large LCD display
WiFi or Modbus RS485 optional
0-10V analog signal output
Cooling, heating, ventilating or auto mode
EC motor fan
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Key card optional
Key lock function to avoid mistake operation
Sleep mode
Specifications:
Power Supply
90-240Vac, 50/60Hz
Power comsumption
<1W
Load current
Max 3A
Setpoint Range
5-35°C
Set Unit
1°C/step
Display Accuracy
±0.5°C
Networking
WiFi function or Modbus RS485
Fan type
EC motor fan
Outputs
0-10V
analog signal
Temperature Sensor
NTC 10K
Backlight
Black background white lighting
Enclosure
Fire proof ABS
Ambient Condition
-10°C~60°C, 5-95% RH (non-condensing)
Dimension
86*86*14mm
Mounting
Wall mounted with standard EU box
Wiring
Terminal block max. 1.5 mm²
Installation hole distance
60mm
Protection
IP20
Power Supply
90-250VAC, 50/60Hz
Self comsumption
<3W
Load current
Max 3A
Setpoint Range
1-50°C ( Default 16-30°C)
Set Unit
1°C/step
Display Accuracy
±0.1°C
Networking
Modbus RS485 or WiFi
Fan type
3-speed fan
Outputs
Relays
Temperature Sensor
NTC 10K
LCD
Touch screen LCD (64*41mm)
Enclosure
Fire proof ABS, black or white color
Ambient Condition
-10°C~60°C, 5-95% RH (non-condensing)
Dimension
Display board:86*86*13.5mm
Mounting
Wall mounted with standard EU box
Wiring
Terminal block max. 1.5 mm²
Installation hole distance
60mm
Protection
IP20 according to EN60529
