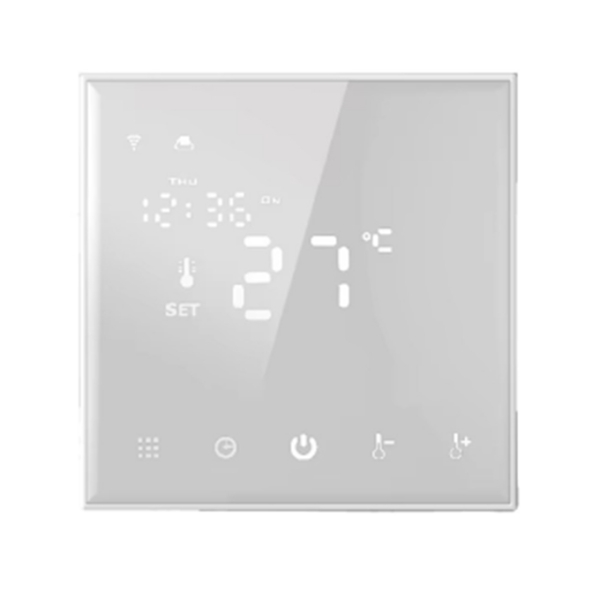

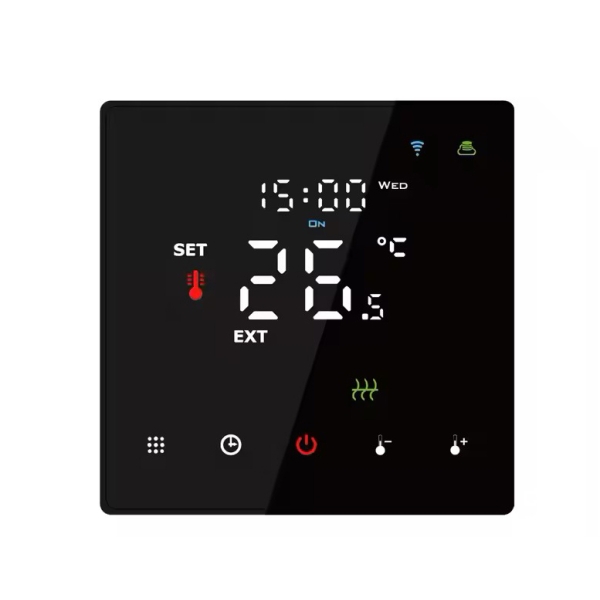

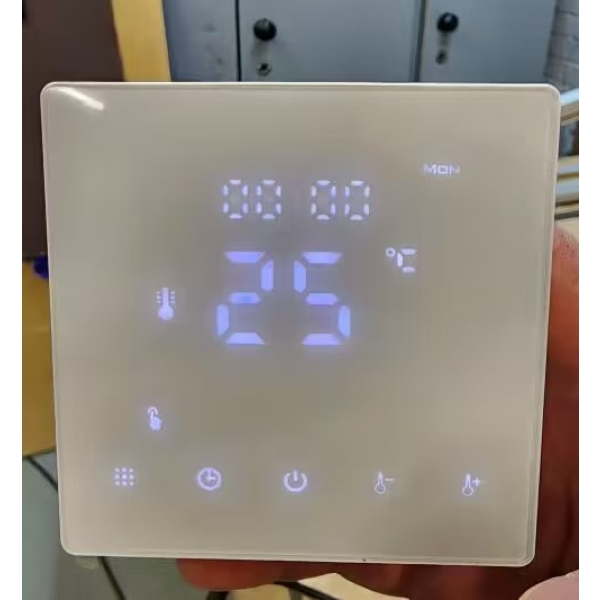

ST-C27 WiFi smart heating thermostat is developed to control electric underfloor heating, water heating or water/gas boiler system. It's LED display and LED matrix light. These units are designed for use in commercial, industrial, residential.
Features:
LED display, more friendly interface; LED matrix light, simple display, energy saving, protect your eyes.
internal sensor and external sensor
0.5°C accuracy keeps temperature within the level you set.
Children lock to prevent misoperation by children
Data memory when power is off.
Holiday mode make you enjoy more comfortable temperature in holiday
The temperature of external sensor can be checked
Classic black/white color
5+2/6+1/7 days 4 periods programmable
Overheat protection and anti-freezing protection
WiFi function, Tuya WiFi App
Specifications:
| Power Supply: | 90-240VAC, 50/60Hz | |||||||||||
| Setpoint Range: | 5-35°C ( Default 16-30°C) | |||||||||||
| Temperature Set Accuracy: | ±1°C/step | |||||||||||
| Temperature Display Accuracy: | ±0.5°C | |||||||||||
| Display: | LED display, LED matrix light, simple display, energy saving, protect your eyes. | |||||||||||
| Temperature Sensor: | NTC 10K | |||||||||||
| Enclosure: | Fire Proof PC+ABS, White /Black enclosure | |||||||||||
| Load current: | Max 3A (water heating), Max 16A (electric heating), | |||||||||||
| Networking: | WiFi ( Modbus RS485 optional) | |||||||||||
| Ambient Condition: | -10°C~50°C, 5-95% RH (non-condensing) | |||||||||||
| Dimension: | 86*86*13mm | |||||||||||
| Mounting: | Wall mounted with standard EU box (Ø=60mm) | |||||||||||
| Installation hole distance: | 60mm | |||||||||||
| Protection: | IP20 according to EN60529 | |||||||||||
| Weight | 115g | |||||||||||
