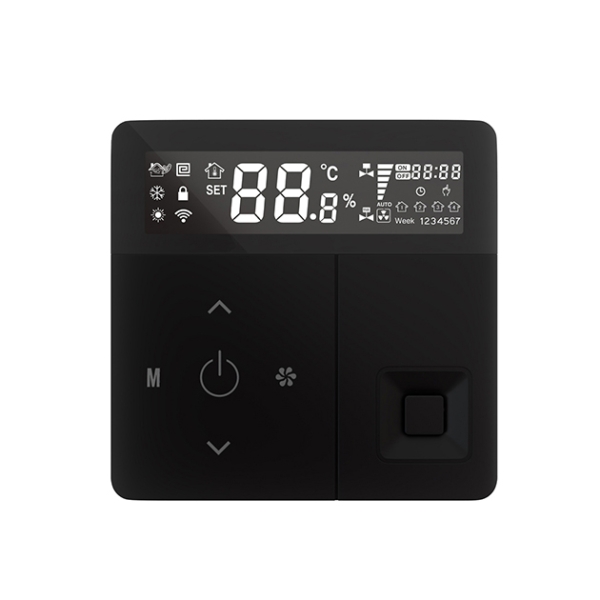

FC170 series is a fashionable touch Screen thermostat. It’s stand-alone microprocessor with LCD display. The thermostats are designed to on/off control fan, motorized valves, dampers for 2-pipe / 4-pipe fan coil unit in air conditioning system. Heating/cooling/ventilating modes are available. It's WiFi or Modbus RS485 optional. 7 days +4 periods programmable
FC170, on/off valve, 3-speed fan
FC170NK with Modbus RS485
FC170-WiFi with WiFi function
Features:
Fashionable and good designe appearance
Detect and Display Room Temperature
Large LCD display touch screen
External sensor
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set
Specifications:
Power Supply
90-250VAC, 50/60Hz
Self comsumption
<3W
Load current
Max 3A
Setpoint Range
1-50°C ( Default 16-30°C)
Set Unit
1°C/step
Display Accuracy
±0.1°C
Networking
Modbus RS485 or WiFi
Fan type
3-speed fan
Outputs
Relays
Temperature Sensor
NTC 10K
LCD
Touch screen LCD (64*41mm)
Enclosure
Fire proof ABS, black or white color
Ambient Condition
-10°C~60°C, 5-95% RH (non-condensing)
Dimension
Display board:86*86*13.5mm
Mounting
Wall mounted with standard EU box
Wiring
Terminal block max. 1.5 mm²
Installation hole distance
60mm
Protection
IP20 according to EN60529

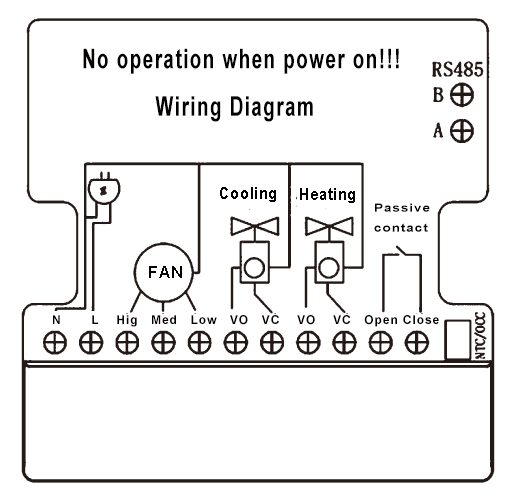

Wiring diagram:
